Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

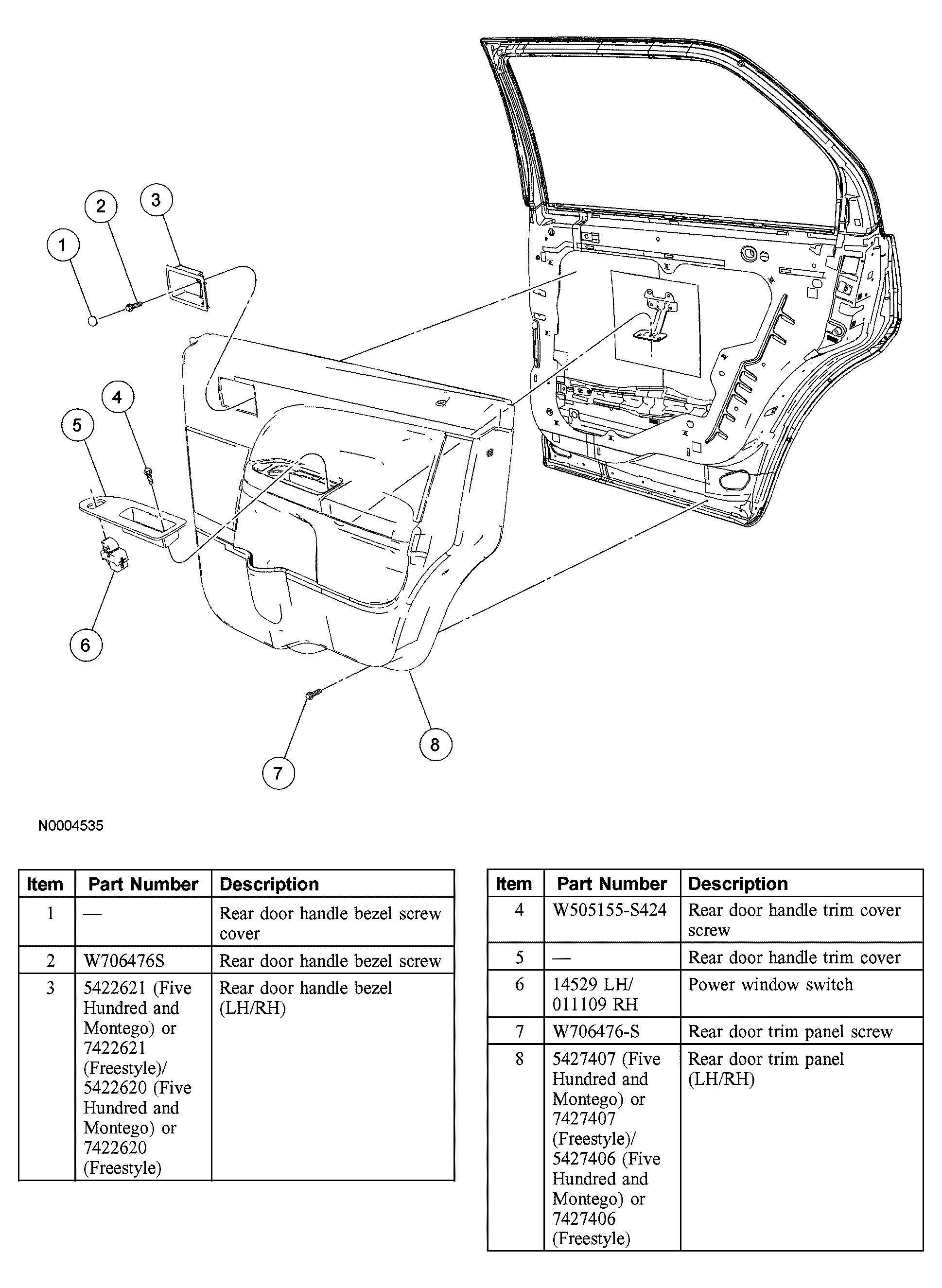

Fig 1: Removing/Installing Rear Door Trim Panel
G03988615Courtesy of FORD MOTOR CO.
  1. Remove the rear door handle bezel screw cover.
  2. Remove the rear door handle bezel screw.
  3. Remove the rear door handle bezel.
  4. Remove the rear door handle trim cover screw.
  5. Remove the 6 rear door trim panel screws.
  6. Position the rear door trim panel by pulling straight away from the rear door to release the retaining clips.
  7. Disconnect the power window switch.
  8. Remove the rear door trim panel.
  9. To install, reverse the removal procedure.
