Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

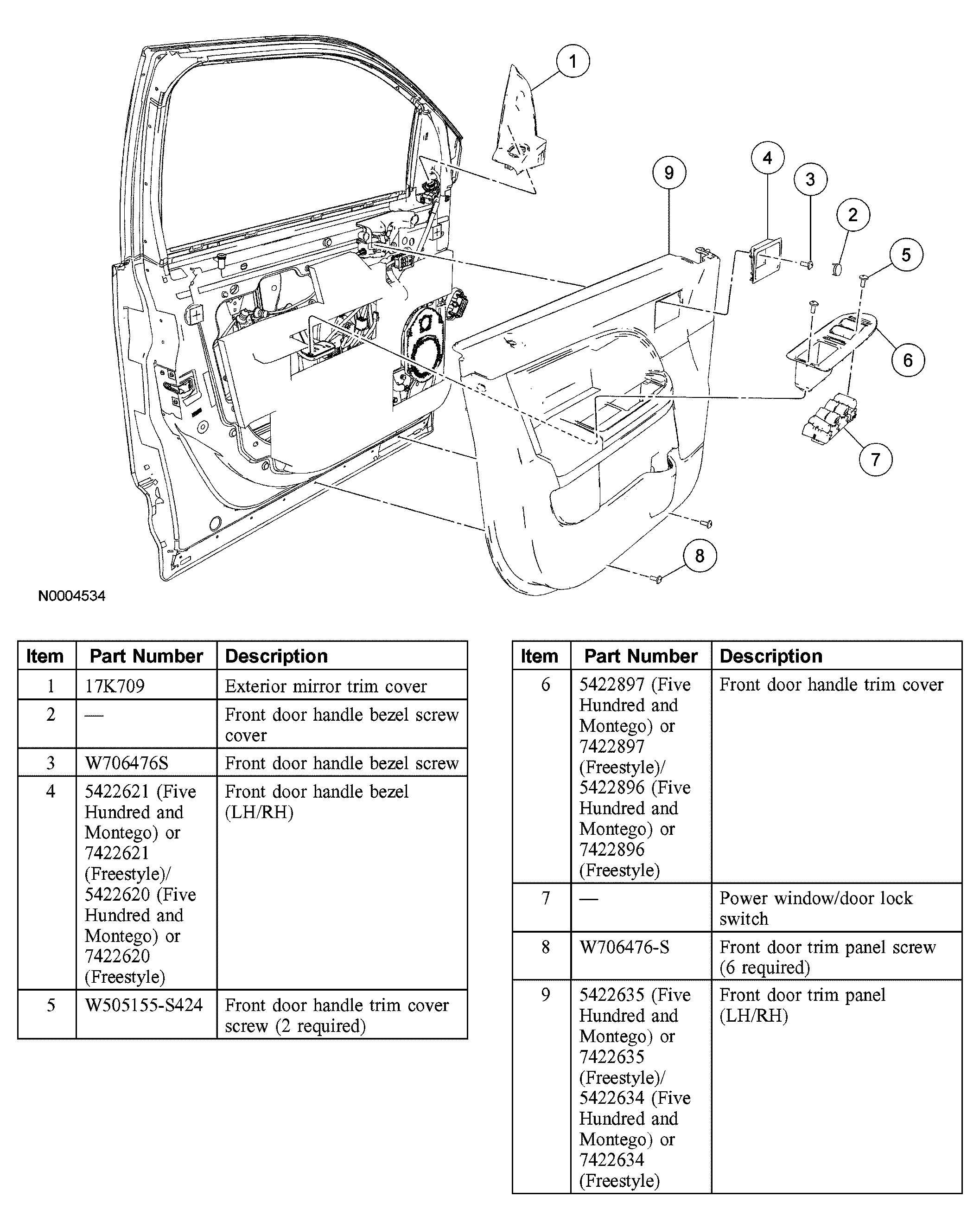

Fig 1: Removing/Installing Front Door Trim Panel
G03988614Courtesy of FORD MOTOR CO.
  1. Remove the exterior mirror trim cover.
  2. Disconnect the exterior mirror control switch electrical connector.
  3. Remove the front door handle bezel screw cover.
  4. Remove the front door handle bezel screw.
  5. Remove the front door handle bezel.
  6. Remove the 2 front door handle trim cover screws
  7. Remove the 6 front door trim panel screws.
  8. Position the front door trim panel by pulling straight away from the front door to release the retaining clips.
  9. Disconnect the power window/door lock switch electrical connector.
  10. If equipped with power memory seat, disconnect the power memory seat electrical connector.
  11. Remove the front door trim panel.
  12. To install, reverse the removal procedure.
