3.5L Vehicles
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

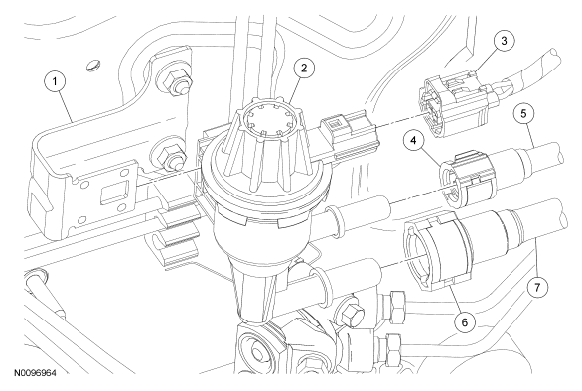

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 9F931 | Evaporative Emission (EVAP) canister purge valve bracket |
| 2 | 9G641 | EVAP canister purge valve |
| 3 | 14A464 | EVAP canister purge valve electrical connector |
| 4 | - | Vapor tube-to-EVAP canister purge valve quick connect coupling (part of 9G271) |
| 5 | 9G271 | Vapor tube |
| 6 | - | Vapor tube-to-EVAP canister purge valve quick connect coupling (part of 9G279) |
| 7 | 9G279 | Vapor tube |
