Radiator (View 2 of 2)
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

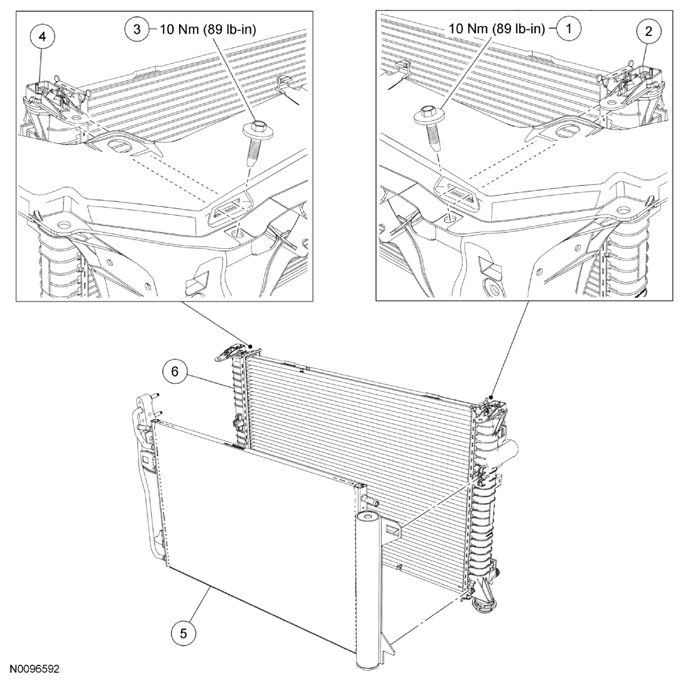

| Item | Part Number | Description |
|---|---|---|
| 1 | W500214 | LH upper radiator support bracket bolt |
| 2 | 8A194 | LH upper radiator support bracket |
| 3 | W500214 | RH upper radiator support bracket bolt |
| 4 | 8A194 | RH upper radiator support bracket |
| 5 | 19710 | A/C condenser |
| 6 | 8005 | Radiator |
- Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING in this service information.
- Remove the cooling fan motor and shroud. For additional information, refer to COOLING FAN MOTOR AND SHROUD - 2.5L, 3.0L (4V) in this service information.
- Disconnect the upper radiator hose from the radiator.
- Disconnect the radiator-to-degas bottle hose from the radiator.
- If equipped, disconnect the 2 transmission cooling tubes from the radiator.
- To install, tighten to 30 Nm (22 lb-ft).
- Disconnect the lower radiator hose from the radiator.
- Remove the 2 bolts from the upper radiator support brackets, position the radiator towards the engine and remove the 2 upper radiator support brackets from the radiator.
- To install, tighten to 10 Nm (89 lb-in).
- Remove the A/C condensor-to-radiator pin-type retainer.
- Squeeze the tabs and separate the A/C condenser from the radiator.
- Remove the radiator.
- To install, reverse the removal procedure.
- Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING in this service information.
