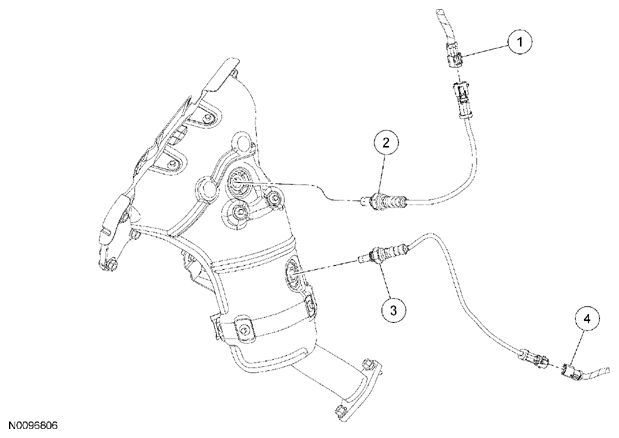

Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Heated Oxygen Sensor (HO2S) electrical connector (part of 12C508) |
| 2 | 9F472 | HO2S |
| 3 | 9G444 | Catalyst Monitor Sensor (CMS) |
| 4 | 14A464 | CMS electrical connector (part of 12C508) |
- For additional information, refer to the appropriate procedures in this service information.
