Accessory Drive Belt Tensioner: Installation

WARNING: This page is about a different car, the 2011 Lincoln MKZ and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the accessory drive belt tensioner and the 3 bolts.
    • Tighten to 11 Nm (97 lb-in).
    2. NOTE: After installation, make sure the accessory drive belt is correctly seated on all pulleys.
  2. Working from the top of the vehicle, rotate the accessory drive belt tensioner clockwise and install the accessory drive belt on the generator pulley.
  3. Install the RH splash shield and the 6 pin-type retainers.
  4. Position the RH fender splash shield and install the 4 screws.

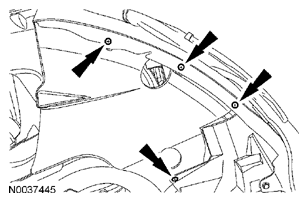

Fig 1: Locating RH Fender Splash Shield Mounting Screws
G07785731Courtesy of FORD MOTOR CO.
