Power Steering Pump Belt

WARNING: This page is about a different car, the 2011 Lincoln MKZ and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

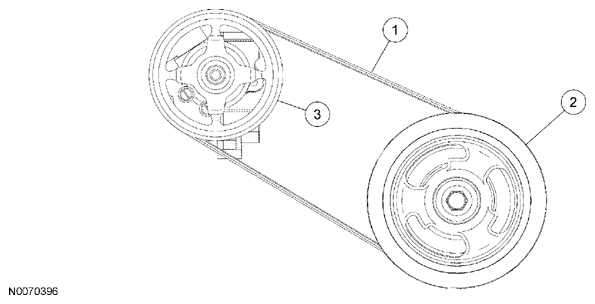

Fig 1: Identifying Power Steering Pump Belt Components
G07785720Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 6C301 Power steering pump drive belt
2 6316 Crankshaft pulley
3 3D639 Power steering pump pulley
