Removal and Installation
WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

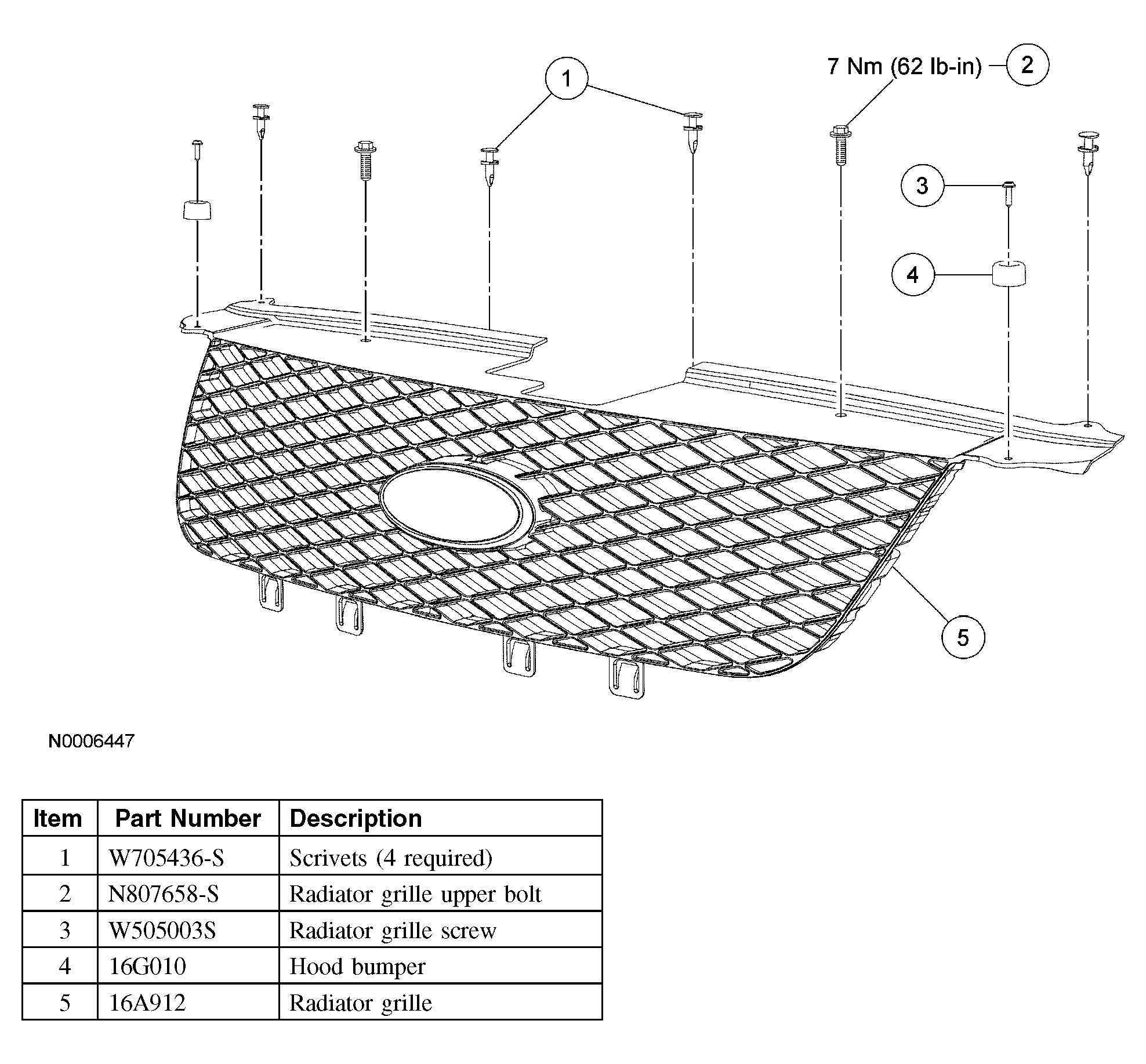

- Open the hood.
- Remove the 4 scrivets
- Remove the 2 radiator grille upper bolts.
- To install, tighten to 7 Nm (62 lb-in).
- Remove the 2 radiator grille screws.
- Remove the 2 hood bumpers.
- Remove the radiator grille.
- Release the 4 retaining tabs from the bumper cover.
- Pull upward on the radiator grille to remove it from the bumper cover.
- To install, reverse the removal procedure.
