Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

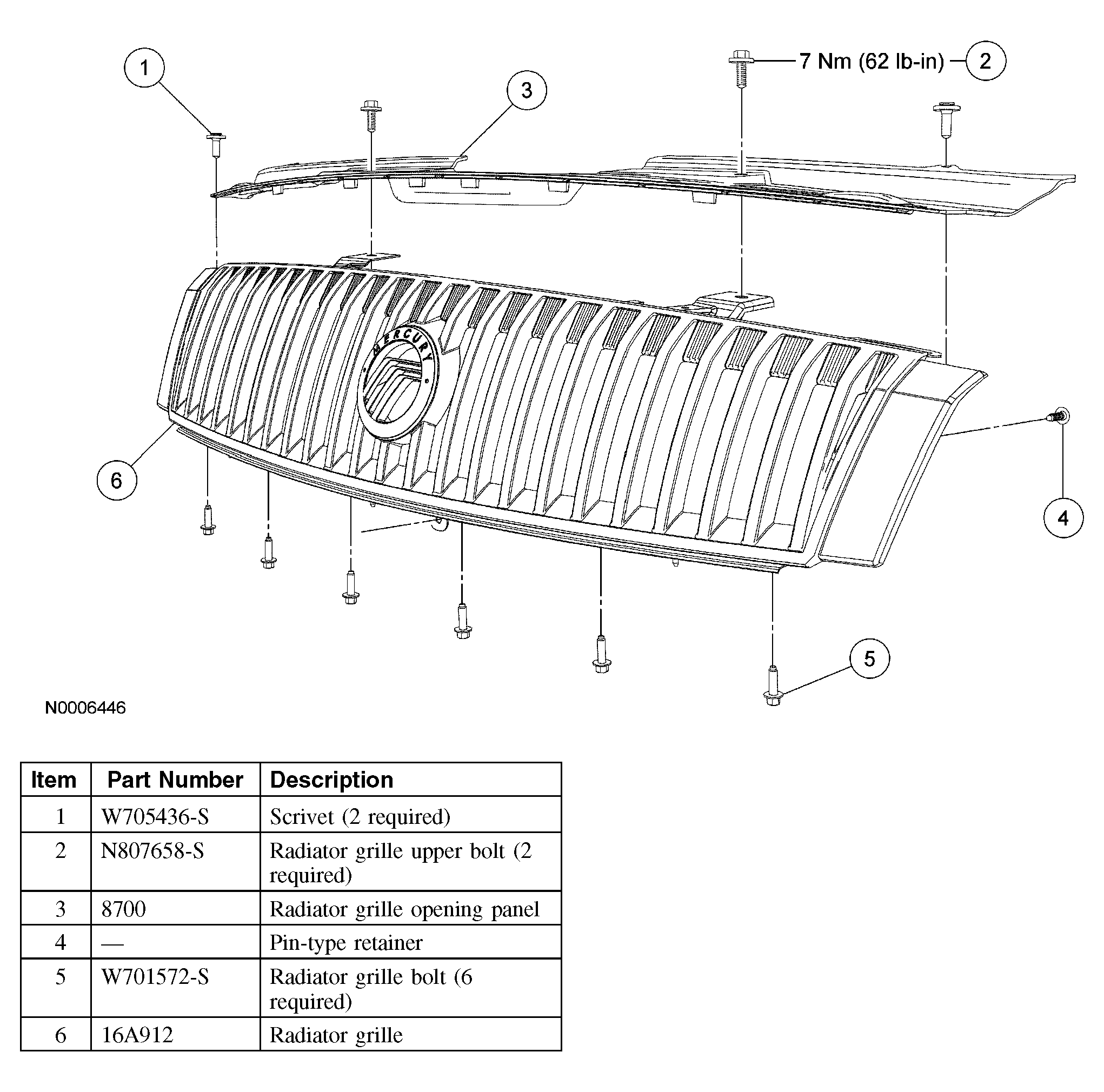

Fig 1: Removing/Installing Radiator Grille - Five Hundred, Montego
G03988620Courtesy of FORD MOTOR CO.

    All vehicles

  1. Open the hood.
  2. Remove the scrivets.
  3. Remove the radiator grille opening panel bolts.
    • To install, tighten to 7 Nm (62 lb-in).
  4. Remove the radiator grille opening panel.
  5. Position the top of the radiator grille forward for access to the radiator grille bolts.

    6. Montego

  6. Remove the radiator grille pin-type retainer.

    7. All vehicles

  7. Remove the 6 radiator grille bolts.
  8. Remove the radiator grille.
  9. To install, reverse the removal procedure.
