Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear door.
  2. Remove the 4 rear door moulding retaining bolts.

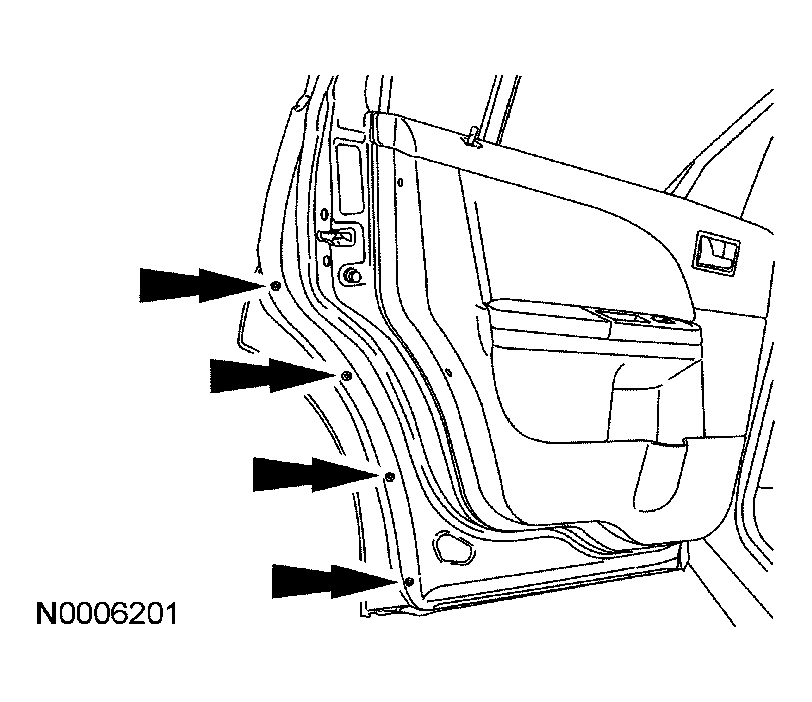

    Fig 1: Removing/Installing Rear Door Moulding Retaining Bolts
    G03988625Courtesy of FORD MOTOR CO.
  3. Release the rear door moulding retaining clips.
    • Start at the rear lower portion of the rear door moulding, moving forward along the rear door.
  4. Remove the rear door moulding.
  5. To install, reverse the removal procedure.
    • It is necessary to install new rear door moulding retainers anytime the rear door moulding is removed.
