Radiator Grille Opening Panel Reinforcement: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

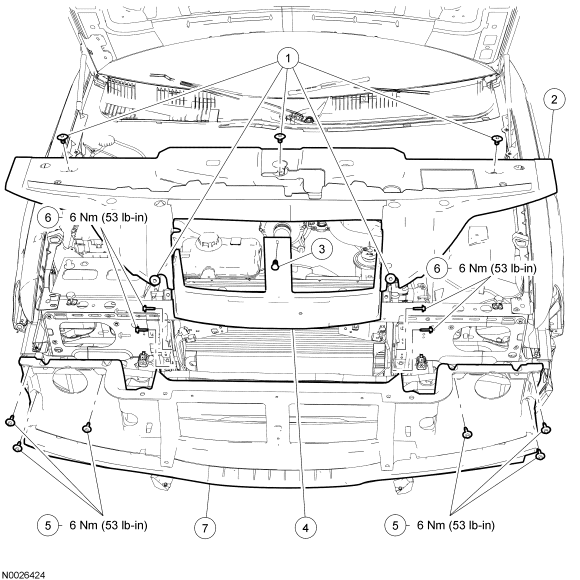

Fig 1: Radiator Grille Opening Reinforcement Panel Replacement Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W706519 | Radiator sight shield pin-type retainers (5 required) |
| 2 | 8C291 | Radiator sight shield |
| 3 | W706519 | Grille opening panel reinforcement cover pin-type retainer |
| 4 | 8C299 | Grille opening panel reinforcement cover |
| 5 | - | Radiator grille opening panel bolts (6 required) (part of 8A284) |
| 6 | - | Radiator grille opening panel bracket bolts (4 required) (part of 8A284) |
| 7 | 8A284 | Radiator grille opening panel reinforcement |
