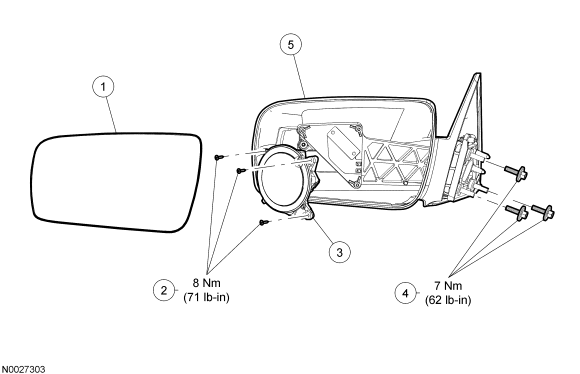

Exterior Mirrors - Exploded View
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17K707 | Exterior mirror glass |
| 2 | - | Exterior mirror motor screws (3 per side required) |
| 3 | 17D696 | Exterior mirror motor |
| 4 | N606675 | Exterior mirror mounting bolts (3 per side required) |
| 5 | 17682 LH/17683 RH | Exterior mirror housing |
- For additional information, refer to the appropriate procedures.
