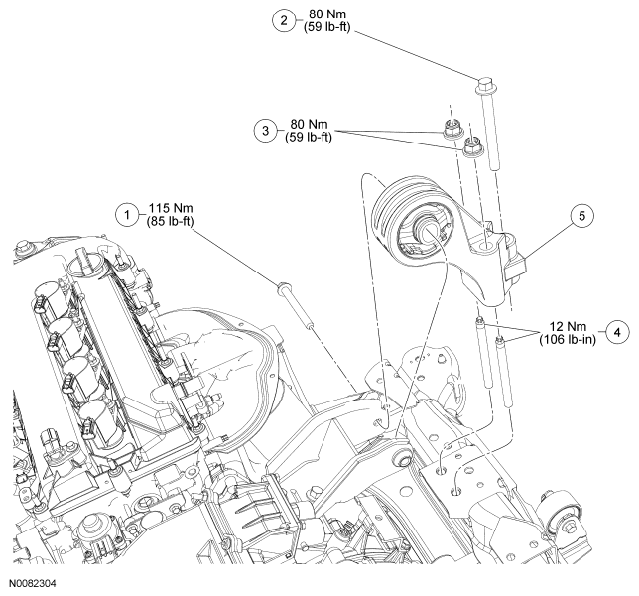

Transaxle Support Insulator - Rear
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
W710173 |
Rear insulator through bolt |
| 2 |
W711571 |
Rear insulator bolt |
| 3 |
N807144 |
Rear insulator nuts (2 required) |
| 4 |
W709148 |
Rear insulator studs (2 required) |
| 5 |
6E037 |
Rear insulator |
