Beltline Molding - Rear Door: Notes

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

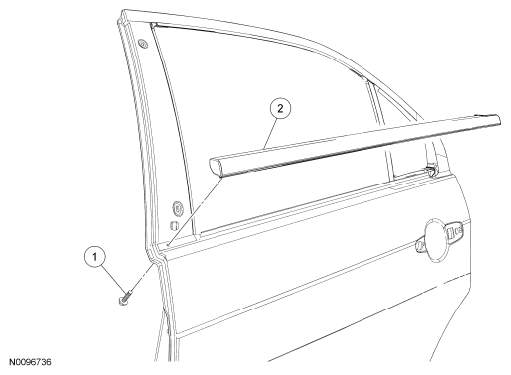

Fig 1: Identifying Beltline Molding - Rear Door
G06271413Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 - Rear door beltline molding screw (part of 25597)
2 25597 Rear door beltline molding
