Door Trim Panel - Rear: MKZ
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

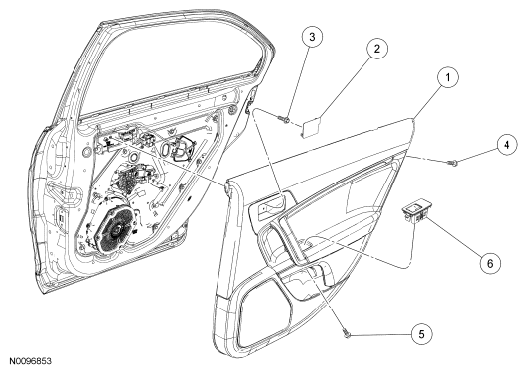

RH shown in illustration, LH similar.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 5427406 | Rear door trim panel |
| 2 | 5424056 | Rear door inside handle escutcheon bolt cover |
| 3 | W709494 | Rear door inside handle escutcheon bolt |
| 4 | W707745 | Rear door trim panel upper screw |
| 5 | W712297 | Rear door trim panel lower screw |
| 6 | 14529 | Rear door trim panel switch |
