Door Trim Panel - Front: MKZ
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

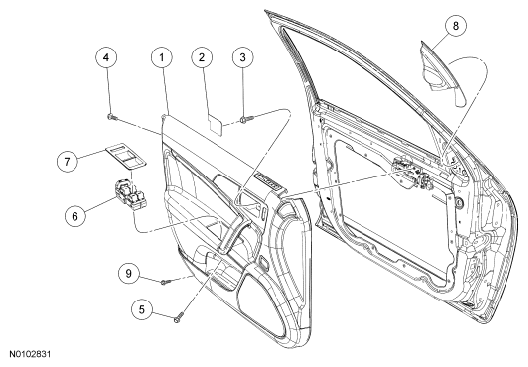

LH shown in illustration, RH similar.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 5423942 | Front door trim panel |
| 2 | 5424057 | Front door inside handle escutcheon screw cover |
| 3 | W712297 | Front door inside handle escutcheon screw |
| 4 | W707745 | Front door trim panel upper screw |
| 5 | W712297 | Front door trim panel center screw |
| 6 | 14529 | Front door trim panel multiswitch |
| 7 | 14524 | Front door trim panel multiswitch bezel |
| 8 | 17K709 | Front door trim panel sail panel |
| 9 | W707745 | Front door trim panel lower screw |
