Special Tool(s)
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL REFERENCE TABLE
| Fuel Storage Tanker 164-R3202 or equivalent | |
| Powertrain Lift 014-00765 or equivalent |

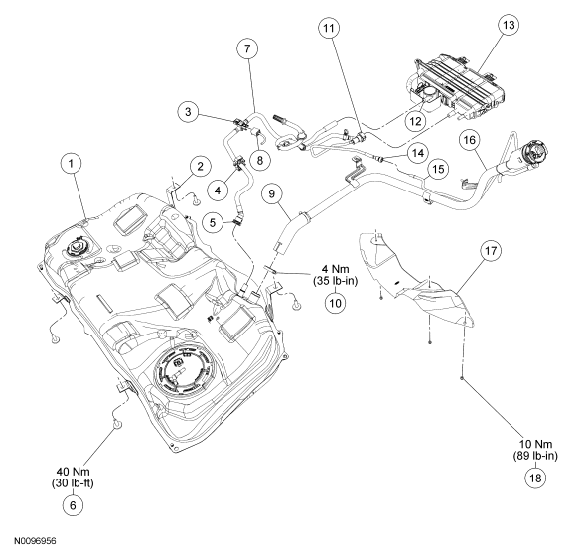

Fig 1: Identifying Fuel Vapor Tube Assembly Replacement Components With Torque Specifications - All Wheel Drive (AWD)
PART NUMBER DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 9002 | Fuel tank |
| 2 | 9092 | Fuel tank strap (2 required) |
| 3 | 9C052 | Fuel Tank Pressure (FTP) sensor (part of 9A228) |
| 4 | - | Retainer clip (part of 9A228) (3 required) |
| 5 | - | Fuel vapor tube assembly-to-fuel tank quick connect coupling (part of 9A228) |
| 6 | W505444 | Fuel tank strap bolt (4 required) |
| 7 | 9A228 | Fuel vapor tube assembly |
| 8 | 14A464 | FTP sensor electrical connector |
| 9 | - | Fuel tank filler pipe hose (part of 9034) |
| 10 | W525937 | Fuel tank filler pipe hose clamp |
| 11 | - | Fuel vapor tube assembly-to-Evaporative Emission (EVAP) canister quick connect coupling (part of 9A228) |
| 12 | 9G676 | Fuel vapor separator and solenoid assembly (part of 9E857) |
| 13 | 9E857 | EVAP canister assembly |
| 14 | - | Fuel vapor tube assembly-to-recirculation tube quick connect coupling (part of 9A228) |
| 15 | - | Fuel tank filler pipe recirculation tube (part of 9034) |
| 16 | 9034 | Fuel tank filler pipe |
| 17 | 5411268 | Fuel tank filler pipe heat shield |
| 18 | W707142 | Fuel tank filler pipe heat shield nut (3 required) |
