2.5L Vehicles
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

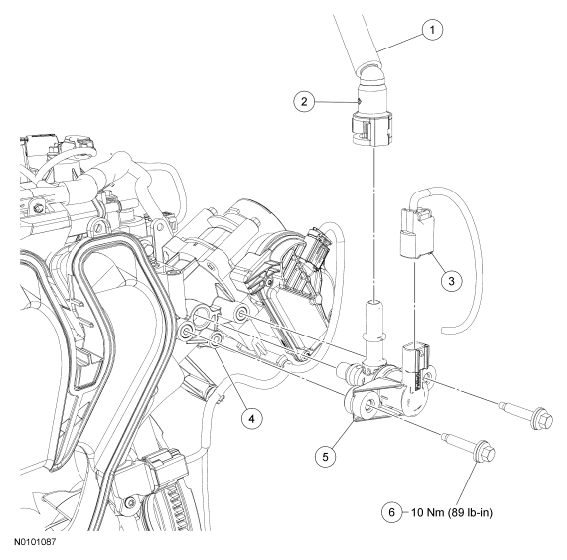

Fig 1: Identifying Evaporative Emission Canister Purge Valve Replacement Components With Torque Specifications - 2.5L
PART NUMBER DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 9G271 | Vapor tube |
| 2 | - | Vapor tube-to-Evaporative Emission (EVAP) canister purge valve quick connect coupling (part of 9G271) |
| 3 | 14A464 | EVAP canister purge valve electrical connector |
| 4 | 9424 | Intake manifold |
| 5 | 9G866 | EVAP canister purge valve |
| 6 | W503278 | EVAP canister purge valve bolt (2 required) |
