Exterior Door Handle: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

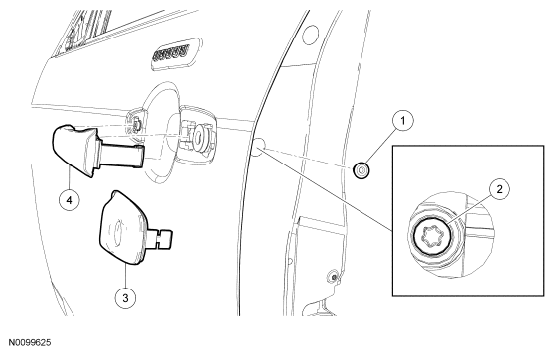

LH front door shown, other doors similar.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION TABLE
| Item |
Part Number |
Description |
| 1 |
- |
Grommet |
| 2 |
- |
Exterior door handle bezel retaining screw |
| 3 |
54218A14/5422088 |
Exterior door handle bezel (with key hole/without key hole) |
| 4 |
5422404 |
Exterior door handle |
