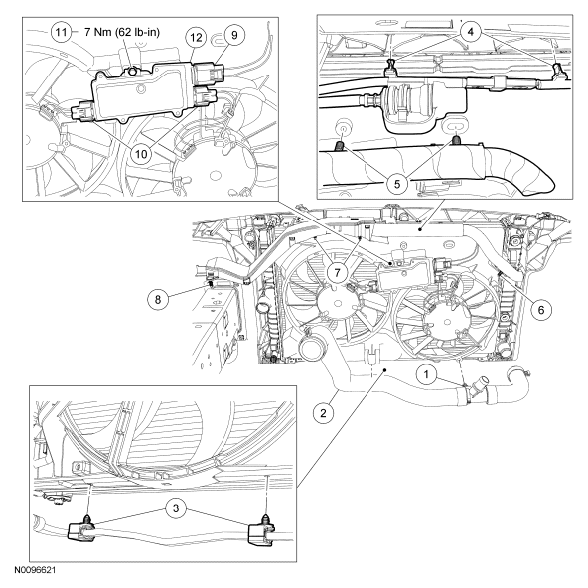

Cooling Fan Motor and Shroud (View 1 Of 2)
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH lower radiator hose pin-type retainer (part of 8B273) |
| 2 | 8B273 | Lower radiator hose |
| 3 | 256844 | Transmission fluid cooler tube retaining clips (part of 7R081) |
| 4 | 13A506 | Block heater retainers (part of 6B018) |
| 5 | 14A099 | Wire harness retainers (part of 14290) |
| 6 | 14A099 | Wire harness retainer (part of 14290) |
| 7 | 14A099 | Wire harness shield retainers (part of 14290) |
| 8 | 14A099 | Wire harness shield retainer (part of 14290) |
| 9 | 14A464 | Cooling fan module electrical connector (part of 14290) |
| 10 | - | Cooling fan module electrical connectors (part of 8C607) |
| 11 | - | Cooling fan module bolt |
| 12 | - | Cooling fan module |
