Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the horn assembly bolt.

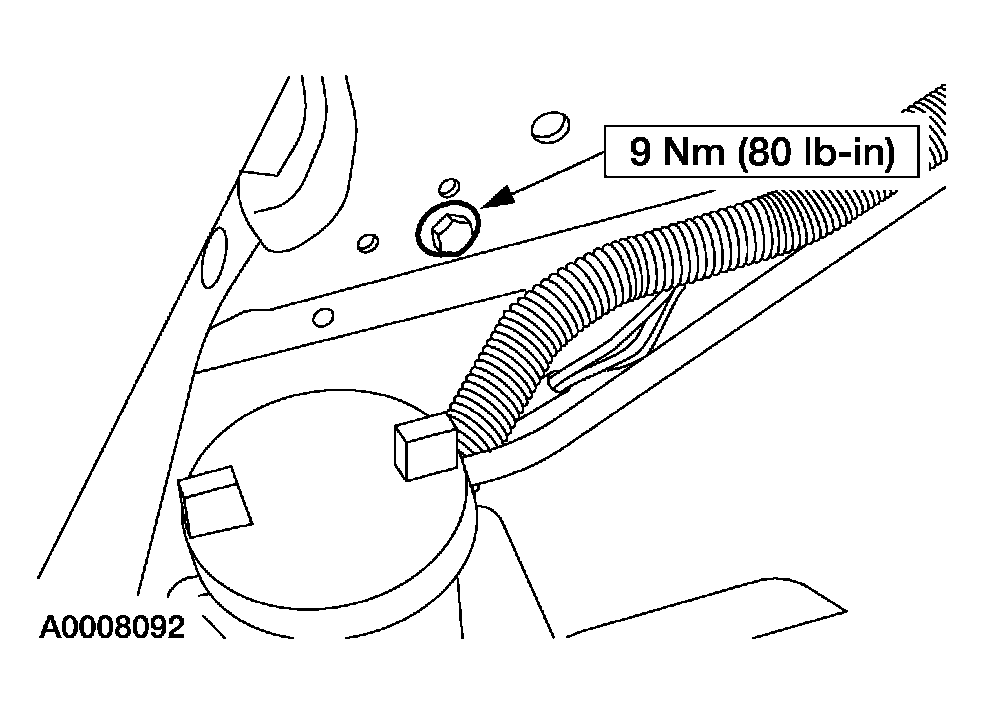

Fig 1: Removing Horn Assembly Bolt
Courtesy of FORD MOTOR CO.
Remove the RH fender apron retainers.
- Remove the RH fender lip to RH fender apron screws.
- Remove the RH fender apron to inner fender bolts.

  Fig 2: Removing RH Fender Apron Retainers
  Courtesy of FORD MOTOR CO.
Remove the horn assembly.
1. Position the fender apron aside to gain access to the horn assembly.
2. Remove the horn assembly.
  - Disconnect the electrical connector.

    Fig 3: Removing Horn Assembly
    Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
