Removal And Installation
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

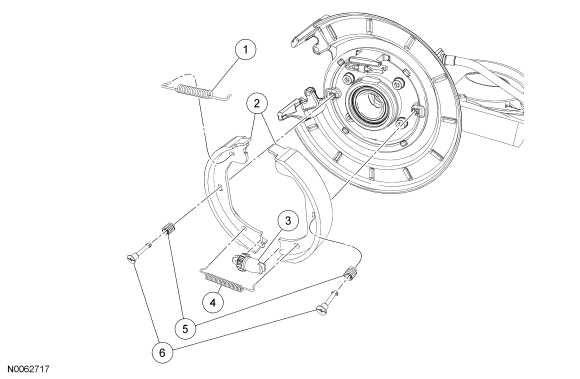

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Parking brake shoe upper retaining spring (part of 2A225) |
| 2 | 2A753 | Parking brake shoes |
| 3 | 2K286 | Parking brake shoe adjuster |
| 4 | - | Parking brake shoe lower retaining spring (part of 2A225) |
| 5 | - | Parking brake shoe retaining springs (2 required) (part of 2A225) |
| 6 | - | Parking brake shoe retaining pins (2 required)(part of 2A225) |
- Remove the rear brake disc. For additional information, refer to REAR DISC BRAKE article.
- Remove the parking brake shoe upper return spring.
- Remove the 2 parking brake shoe retaining pins.
- Remove the 2 parking brake shoe retaining springs.
- Remove the parking brake shoe lower return spring.
- Remove the parking brake shoe adjuster.
- Remove the parking brake shoes.
- To install, reverse the removal procedure.
- Using the specified lubricant, lubricate the parking brake shoe contact points before installation of the rear parking brake shoes.
- Lubricate the adjust screw threads with anti-seize lubricant.
- Adjust the parking brake shoes. For additional information, refer to Parking Brake Shoe Adjustment .
- Check the parking brake for normal operation.
