Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the extension duct. For additional information, refer to AIR DISTRIBUTION AND FILTERING .
Remove the panel/defrost door vacuum control motor (18A318).
1. Disconnect the vacuum line.
2. Remove the pushnut.
3. Remove the screws.
4. Remove the panel/defrost door vacuum control motor.

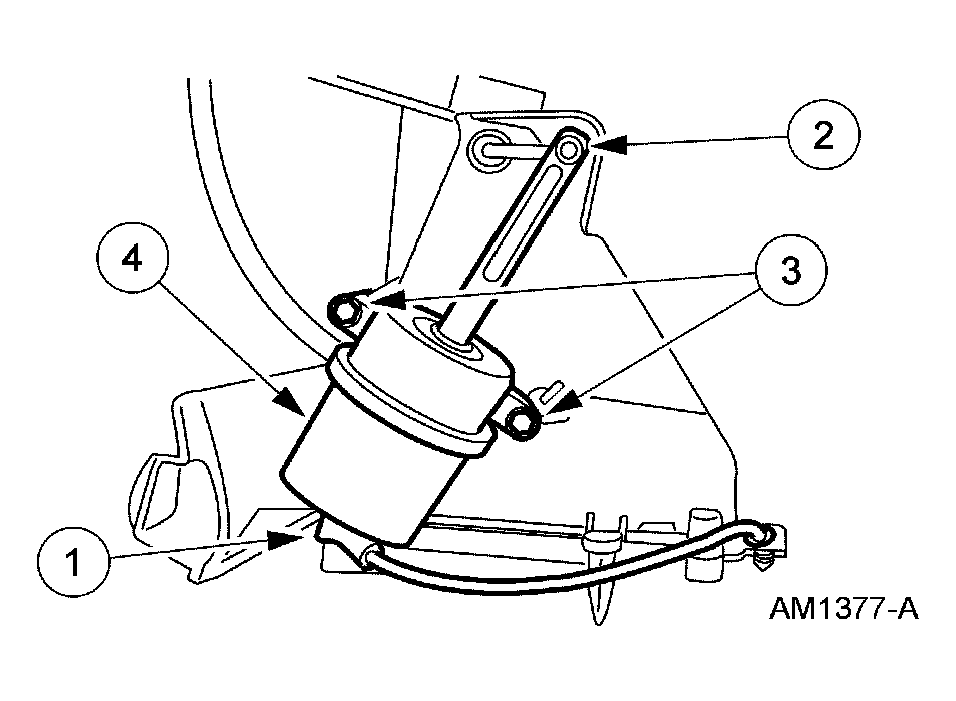

  Fig 1: Removing Panel/Defrost Door Vacuum Control Motor (18A318)
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Install a new pushnut.
