Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not attempt to bend any part of the lever. It is brittle and will break.

Remove the air inlet door vacuum control motor (18A318).
1. Disconnect the vacuum line.
2. Remove the screws.
3. Rotate the vacuum control motor to disengage the lever and remove the air inlet door vacuum control motor.

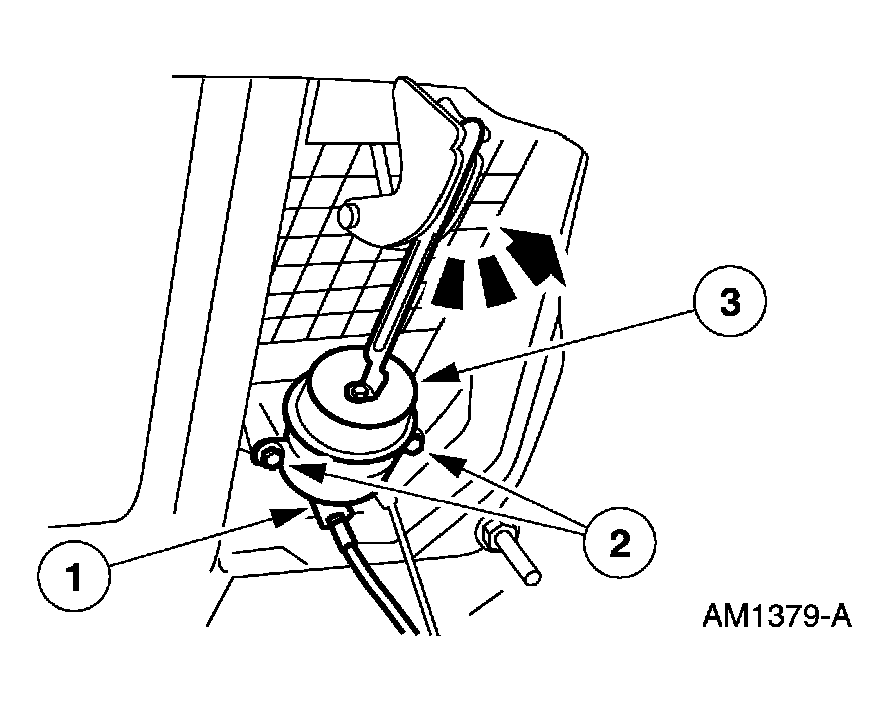

  Fig 1: Removing Air Inlet Door Vacuum Control Motor (18A318)
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
