Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Release the stops and lower the glove compartment door.

Fig 1: Releasing Stops And Lowering Glove Compartment Door
Courtesy of FORD MOTOR CO.
Disconnect the connector.

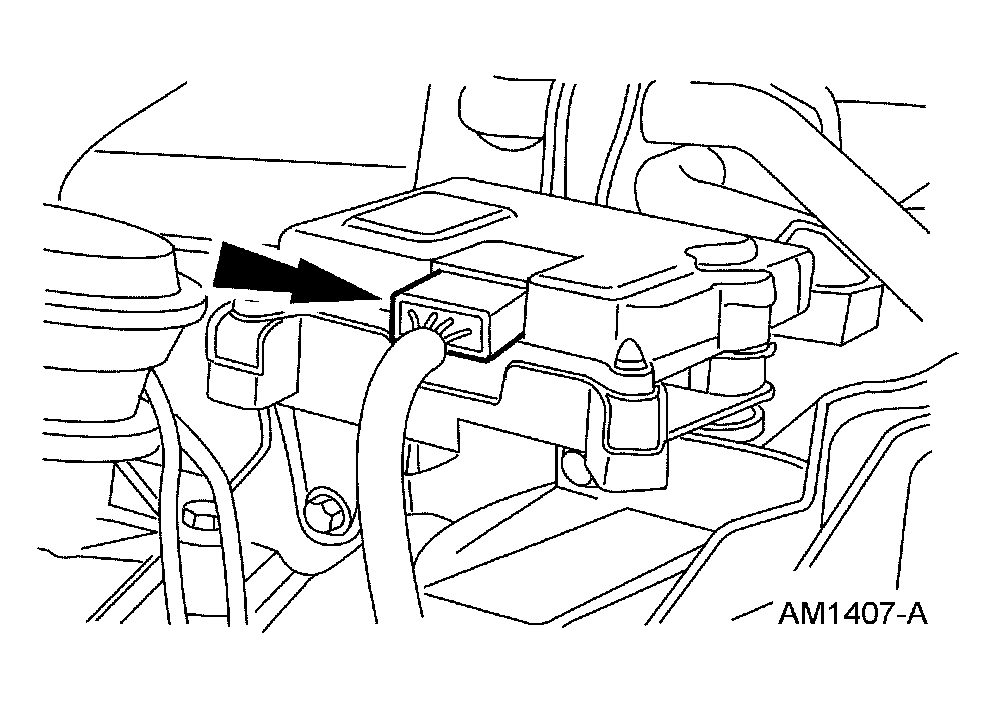

Fig 2: Disconnecting Temperature Blend Door Actuator Connector
Courtesy of FORD MOTOR CO.
Remove the electronic blend door actuator and bracket assembly.
1. Remove the two screws.
2. Rotate the blend door actuator and bracket assembly.
3. Remove the electronic blend door actuator and bracket assembly.

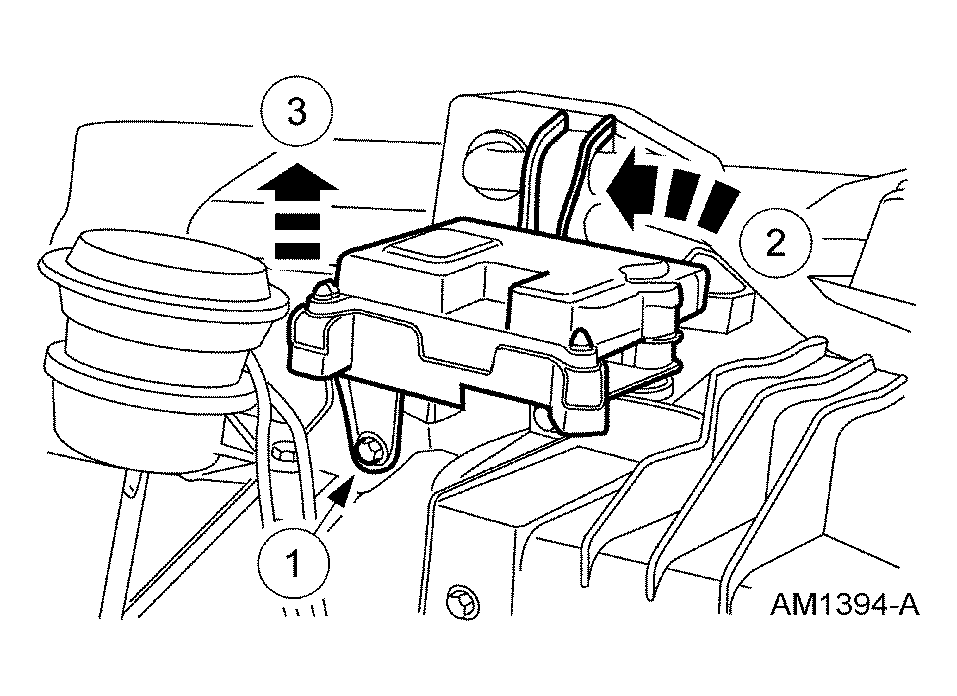

  Fig 3: Removing Electronic Blend Door Actuator And Bracket Assembly
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
