Manifold Absolute Pressure (MAP) Sensor: Notes

WARNING: This page is about a different variant/trim than selected.

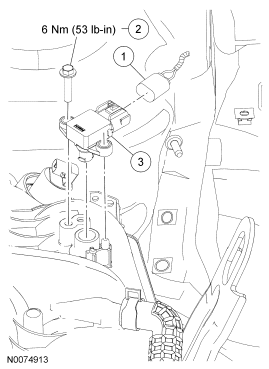

Fig 1: Exploded View Of Manifold Absolute Pressure (MAP) Sensor With Torque Specification
GF0041384Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Manifold Absolute Pressure (MAP) sensor electrical connector
2 W710652 MAP sensor bolt
3 9F479 MAP sensor
