Knock Sensor (KS): Notes

WARNING: This page is about a different variant/trim than selected.

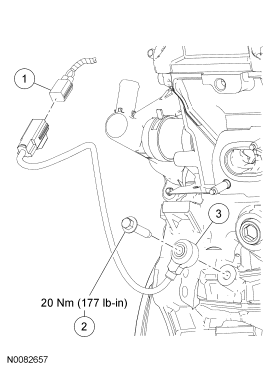

Fig 1: Exploded View Of Knock Sensor (KS) With Torque Specification
GF0041383Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Knock Sensor (KS) electrical connector
2 W500310 KS bolt
3 12A699 KS
