Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View
WARNING: This page is about a different variant/trim than selected.
NOTE:
Front Wheel Drive (FWD) shown, All-Wheel Drive (AWD) similar.

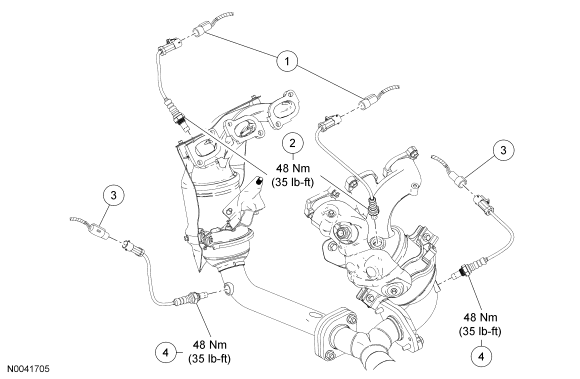

Fig 1: Exploded View Of Heated Oxygen Sensor (HO2S) & Catalyst Monitor Sensor With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Heated Oxygen Sensor (HO2S) electrical connectors |
| 2 | 9F472 | HO2S |
| 3 | 14A464 | Catalyst monitor sensor electrical connectors |
| 4 | 9G444 | Catalyst monitor sensors |
- For additional information, refer to the procedures.
