Engine Coolant Temperature (ECT) Sensor

WARNING: This page is about a different variant/trim than selected.

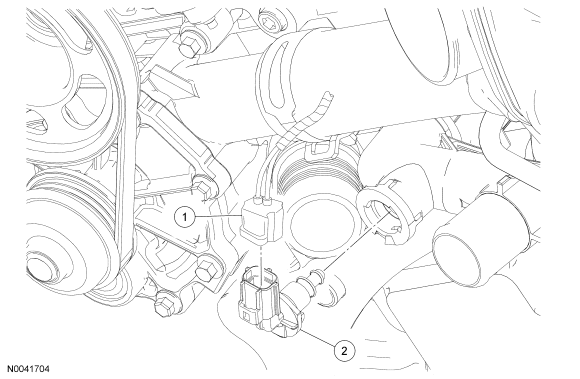

Fig 1: Exploded View Of Engine Coolant Temperature (ECT) Sensor
GF0029443Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Engine Coolant Temperature (ECT) sensor electrical connector
2 12A648 ECT sensor
  1. Drain the cooling system. For additional information, refer to ENGINE COOLING article.
  2. Disconnect the Engine Coolant Temperature (ECT) sensor electrical connector.
  3. Remove the ECT sensor.
    • Pull upward on the locking tab.
    • Rotate the sensor counterclockwise and remove.
    4. Fig 2: Rotating Engine Coolant Temperature (ECT) Sensor
    GF0024528Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
