Camshaft Position (CMP) Sensor
WARNING: This page is about a different variant/trim than selected.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

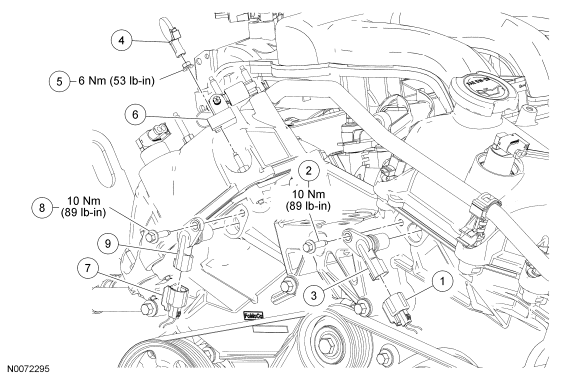

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | LH Camshaft Position (CMP) electrical connector |
| 2 | W500214 | LH CMP bolt |
| 3 | 6B288 | LH CMP |
| 4 | W700497 | Wiring harness retainer |
| 5 | W701539 | Radio frequency interference capacitor nut |
| 6 | 18801 | Radio frequency interference capacitor |
| 7 | 14A464 | RH CMP electrical connector |
| 8 | W500214 | RH CMP bolt |
| 9 | 6B287 | RH CMP |
RH sensor
- Disconnect the wiring harness and retainer from the RH valve cover stud and position it aside.
- Remove the nut and the radio frequency interference capacitor from the RH valve cover stud and position it aside.
- To install, tighten to 6 Nm (53 lb-in).
- Disconnect the Camshaft Position (CMP) electrical connector.
- Remove the bolt and the CMP sensor.
- To install, tighten to 10 Nm (89 lb-in).
- To install, reverse the removal procedure.
Both sensors
NOTE:
Lubricate the CMP O-ring seal with clean engine oil.
