Engine Ignition Components - Exploded View

WARNING: This page is about a different variant/trim than selected.

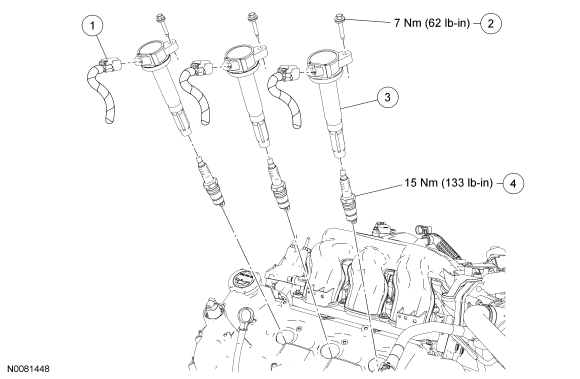

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications - LH Side
GF0041360Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 LH ignition coil-on-plug electrical connector (3 required) (part of 12B637)
2 W708833 LH ignition coil-on-plug bolt (3 required)
3 12A375 LH ignition coil-on-plug (3 required)
4 12405 Spark plug (3 required)

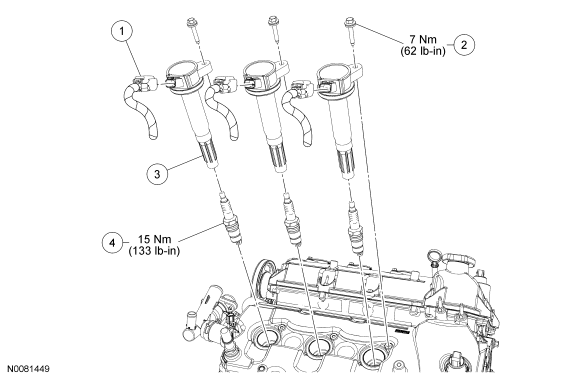

Fig 2: Exploded View Of Engine Ignition Components With Torque Specifications - RH Side
GF0041361Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 RH ignition coil-on-plug electrical connector (3 required) (part of 12B637)
2 W708833 RH ignition coil-on-plug bolt (3 required)
3 12A375 RH ignition coil-on-plug (3 required)
4 12405 Spark plug (3 required)
  1. For additional information, refer to the procedures.
