Valve Train Components - Exploded View

WARNING: This page is about a different variant/trim than selected.

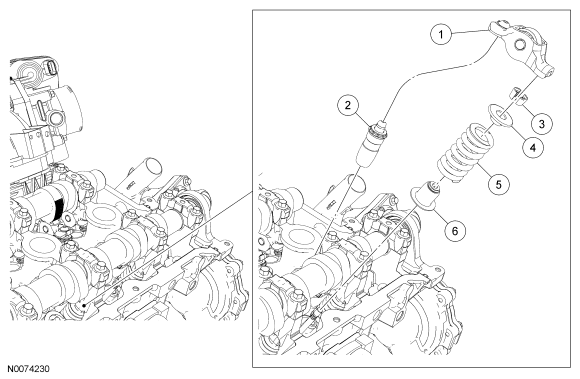

Fig 1: Exploded View Of Valve Train Components - LH Side
GF0028914Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6529 Roller follower (24 required)
2 6C501 Hydraulic lash adjuster (24 required)
3 6518 Valve spring retainer key (48 required)
4 6514 Valve spring retainer (24 required)
5 6513 Valve spring (24 required)
6 6A517 Valve stem seal (24 required)

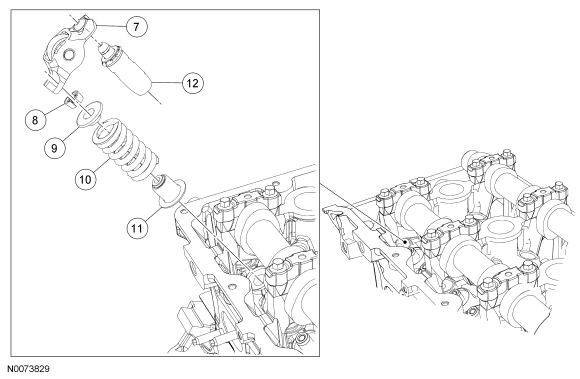

Fig 2: Exploded View Of Valve Train Components - RH Side
GF0028915Courtesy of FORD MOTOR CO.
Item Part Number Description
7 6529 Roller follower (24 required)
8 6518 Valve spring retainer key (48 required)
9 6514 Valve spring retainer (24 required)
10 6513 Valve spring (24 required)
11 6A517 Valve stem seal (24 required)
12 6C501 Hydraulic lash adjuster (24 required)
  1. For additional information, refer to the procedures.
