Valve Cover - RH: Notes

WARNING: This page is about a different variant/trim than selected.

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31-A	-
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4

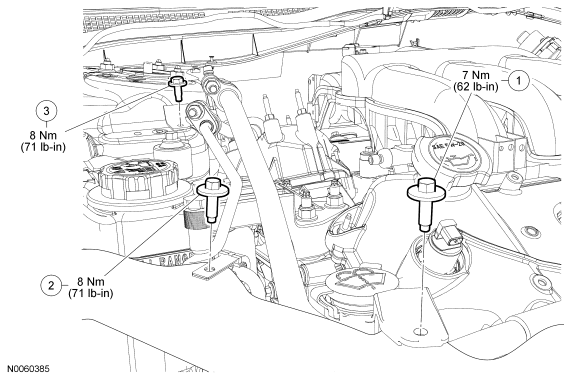

Fig 1: Exploded View Of RH Valve Cover With Torque Specifications (1 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503924	Windshield washer bottle and A/C tube retaining clamp bolt
2	W503924	A/C tube retaining clamp bolt
3	W505422	A/C tube retaining clamp bolt

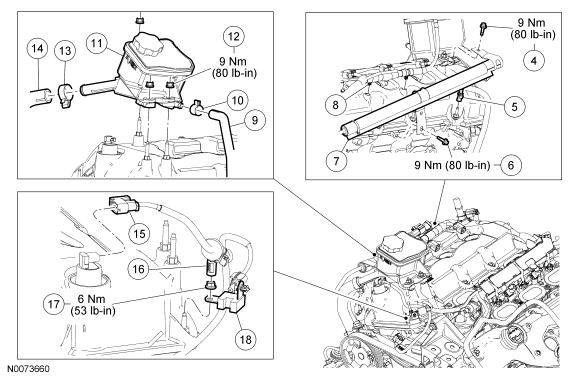

Fig 2: Exploded View Of RH Valve Cover With Torque Specifications (2 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
4	W506413	Power Steering Pressure (PSP) tube bracket-to-reservoir bolt
5	-	Wiring harness retainer (part of 12B637)
6	W506413	PSP tube bracket-to-cylinder head bolt
7	3A719	PSP tube
8	-	Wiring harness retainer (2 required) (part of 12B637)
9	3493	Power steering hose
10	-	Power steering hose clamp (part of 3493)
11	3R700	Power steering reservoir
12	W520111	Power steering reservoir nut (3 required)
13	-	Power steering hose clamp
14	3681	Power steering hose
15	-	Variable Camshaft Timing (VCT) solenoid electrical connector (part of 12B637)
16	-	Wiring harness retainer (part of 12B637)
17	W520411	Radio frequency interference capacitor nut
18	18801	Radio frequency interference capacitor

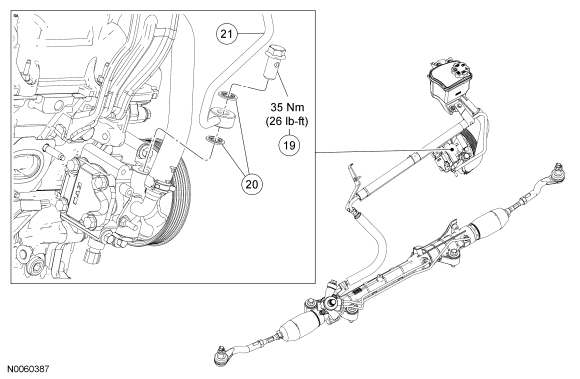

Fig 3: Exploded View Of RH Valve Cover With Torque Specification (3 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
19	506413	PSP tube-to-power steering pump banjo bolt
20	-	PSP tube seals
21	3A719	PSP tube

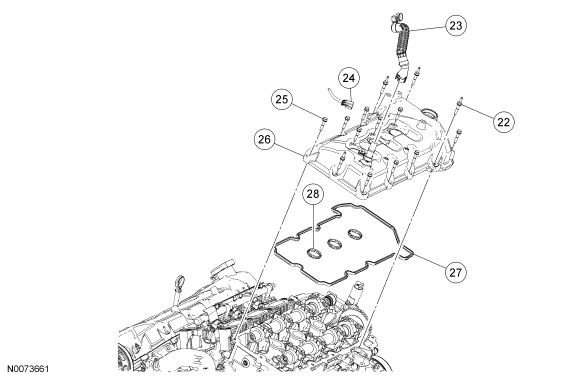

Fig 4: Exploded View Of RH Valve Cover (4 Of 4)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
22	6C519	Valve cover stud bolt (4 required)
23	6K817	PCV hose
24	14A464	PCV valve electrical connector (part of 12B637)
25	6C519	Valve cover bolt (10 required)
26	6582	Valve cover
27	6584	Valve cover gasket
28	6C527	Spark plug cavity gasket (3 required)
