Valve Cover - LH: Notes
WARNING: This page is about a different variant/trim than selected.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31-A |
- |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |

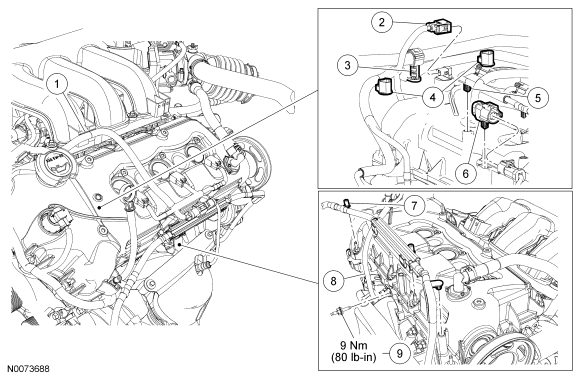

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Upper intake manifold wiring harness retainer (part of 12B637) |
| 2 | 14A464 | Variable Camshaft Timing (VCT) solenoid electrical connector (part of 12B637) |
| 3 | - | Power steering hose retainer clip |
| 4 | - | Wiring harness retainers (2 required) (part of 12B637) |
| 5 | 13A506 | Wiring harness retainer (2 required) (part of 12B637) |
| 6 | 14A464 | LH Heated Oxygen Sensor (HO2S) electrical connector (part of 12B637) |
| 7 | - | Wiring harness retainer (3 required) (part of 12B637) |
| 8 | 6754 | Oil level indicator tube |
| 9 | W701822 | Oil level indicator tube stud bolt |

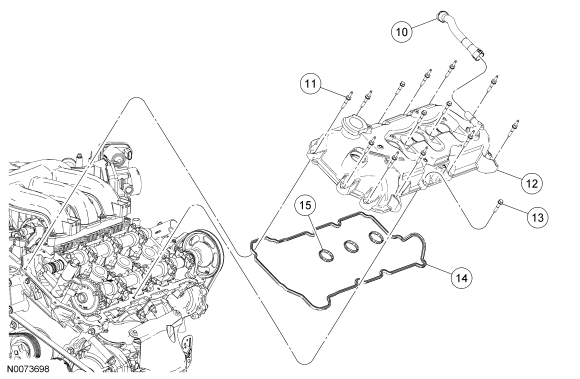

| Item | Part Number | Description |
|---|---|---|
| 10 | 6758 | Crankcase ventilation tube |
| 11 | 6C519 | Valve cover stud bolt (10 required) |
| 12 | 6A505 | Valve cover |
| 13 | 6C519 | Valve cover bolt (4 required) |
| 14 | 6A559 | Valve cover gasket |
| 15 | 6C527 | Spark plug cavity gasket (3 required) |
