Upper Intake Manifold: Notes
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO.

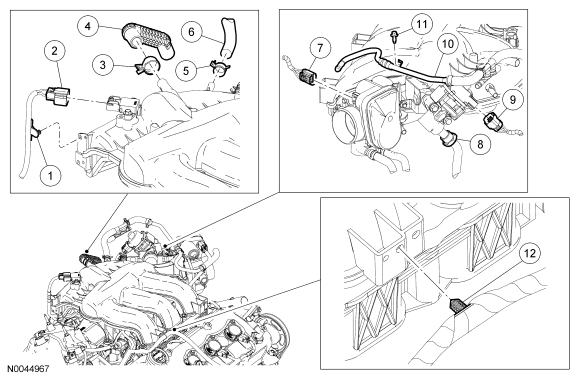

| Item |
Part Number |
Description |
| 1 |
- |
Wiring harness retainer (part of 12B637) |
| 2 |
14A464 |
Manifold Absolute Pressure (MAP) sensor electrical connector (part of 12B637) |
| 3 |
- |
PCV hose clamp (part of 6K817) |
| 4 |
6K817 |
PCV hose |
| 5 |
392984 |
Brake booster vacuum hose clamp |
| 6 |
2C053 |
Brake booster vacuum hose |
| 7 |
2C053 |
Throttle Body (TB) electrical connector (part of 12B637) |
| 8 |
- |
EGR tube nut (part of 9D477) |
| 9 |
14A464 |
EGR valve electrical connector (part of 12B637) |
| 10 |
- |
Vacuum tube |
| 11 |
- |
Vacuum tube retainer bolt |
| 12 |
- |
Wiring harness retainer (part of 12B637) |
Courtesy of FORD MOTOR CO.

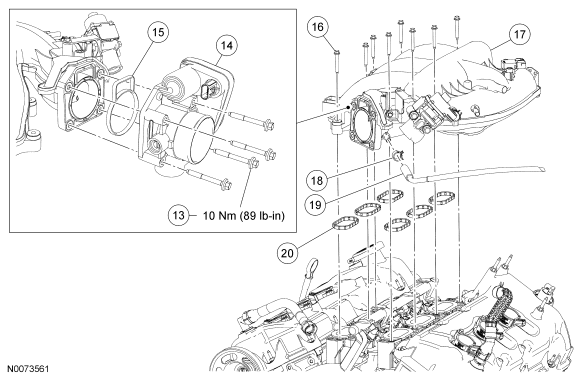

| Item |
Part Number |
Description |
| 13 |
W709168 |
TB bolt (4 required) |
| 14 |
9F991 |
TB |
| 15 |
9E936 |
TB gasket |
| 16 |
9Y450 |
Upper intake manifold bolt (8 required) |
| 17 |
9424 |
Upper intake manifold |
| 18 |
- |
Clamp (part of 9D661) |
| 19 |
9D661 |
Evaporative Emission (EVAP) tube |
| 20 |
9H486 |
Upper intake manifold gasket (6 required) |
