Lower Intake Manifold: Notes

WARNING: This page is about a different variant/trim than selected.

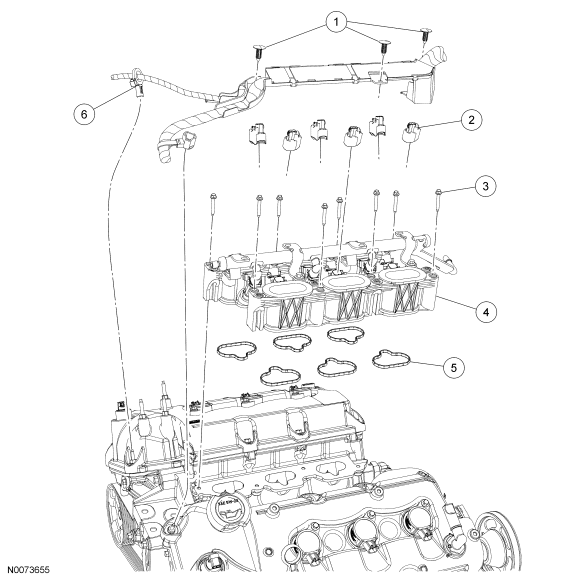

Fig 1: Exploded View Of Lower Intake Manifold

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Wiring harness retainers (3 required) (part of 12B637)
2	14A464	Fuel injector electrical connector (6 required) (part of 12B637)
3	W708187	Lower intake manifold bolt (8 required)
4	9K461	Lower intake manifold
5	9439	Lower intake manifold gasket (6 required)
6	-	RH and LH valve cover stud bolt wiring harness retainers (2 required) (part of 12B637)
