Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal

WARNING: This page is about a different variant/trim than selected.

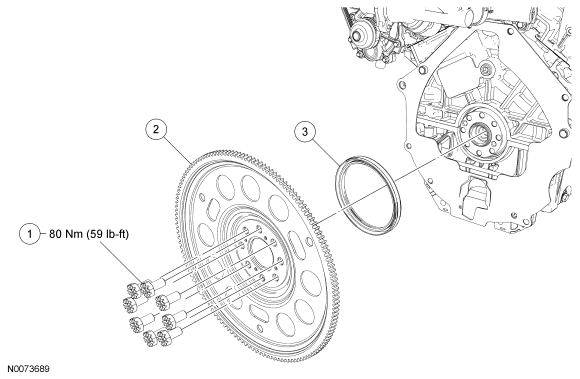

Fig 1: Exploded View Of Flexplate & Crankshaft Rear Seal With Torque Specification
GF0028880Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W701559-S Flexplate bolt (8 required)
2 6375 Flexplate
3 6701 Crankshaft rear seal
  1. For additional information, refer to the procedures.
