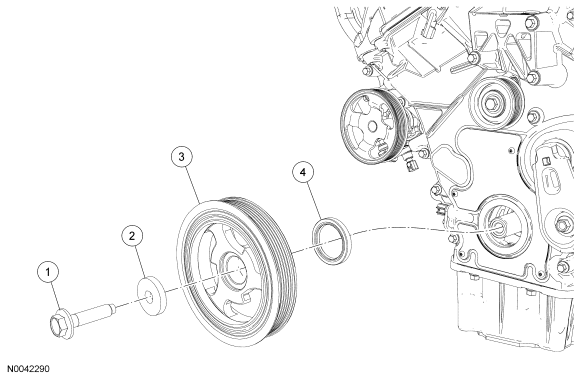

Lower End Components - Exploded View, Crankshaft Pulley and Crankshaft Front Seal
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W701512 |
Crankshaft pulley bolt |
| 2 |
N806165 |
Washer |
| 3 |
6316 |
Crankshaft pulley |
| 4 |
6700 |
Crankshaft front seal |
- For additional information, refer to the procedures.
