Exhaust Manifold - RH, All Wheel Drive (AWD): Notes
WARNING: This page is about a different variant/trim than selected.
Material
| Item |
Specification |
Motorcraft Metal Surface Prep
ZC-31-A |
- |
Courtesy of FORD MOTOR CO.

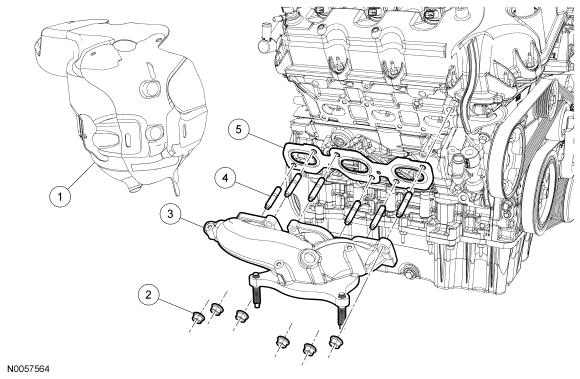

| Item |
Part Number |
Description |
| 1 |
5K291 |
RH catalytic converter heat shield |
| 2 |
W701706 |
RH exhaust manifold nut (6 required) |
| 3 |
9430 |
RH exhaust manifold |
| 4 |
W701732 |
RH exhaust manifold stud (6 required) |
| 5 |
9448 |
RH exhaust manifold gasket |
