Engine Oil Pressure (EOP) Switch: Notes

WARNING: This page is about a different variant/trim than selected.
Material

Item Specification
Thread Sealant with PTFE
TA-24		 WSK-M2G350-A2

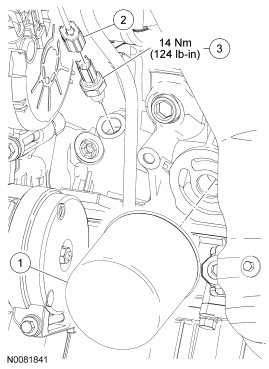

Fig 1: Exploded View Of Engine Oil Pressure (EOP) Switch With Torque Specification
GF0041315Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6714 Engine oil filter
2 14A464 Engine Oil Pressure (EOP) switch electrical connector (part of 12B637)
3 9278 EOP
