Engine Mount: Notes
WARNING: This page is about a different variant/trim than selected.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Lifting Brackets, Engine | 303-050 (T70P-6000) | |
| Support Bar, Engine | 303-F072 | |
| Universal Adapter Brackets | 014-0001 |

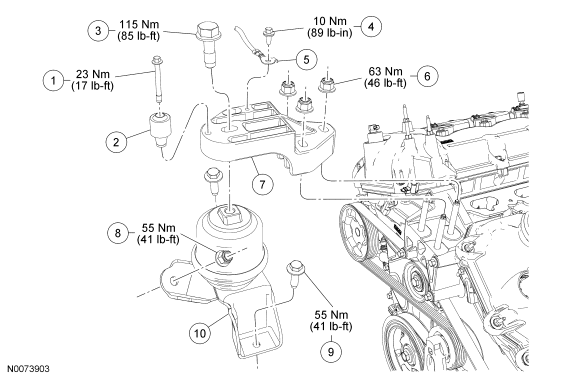

| Item | Part Number | Description |
|---|---|---|
| 1 | W711879 | Damper bolt |
| 2 | 7458 | Damper |
| 3 | W711684 | Engine mount bracket bolt |
| 4 | W705936 | Ground wire bolt |
| 5 | 19A095 | Ground wire |
| 6 | W520213 | Engine support insulator bracket nut (3 required) |
| 7 | 6A094 | Engine mount bracket |
| 8 | W711578 | Engine mount nut |
| 9 | W706496 | Engine mount bolt (2 required) |
| 10 | 6F012 | Engine mount |
