Engine Lubrication Components - Exploded View
WARNING: This page is about a different variant/trim than selected.

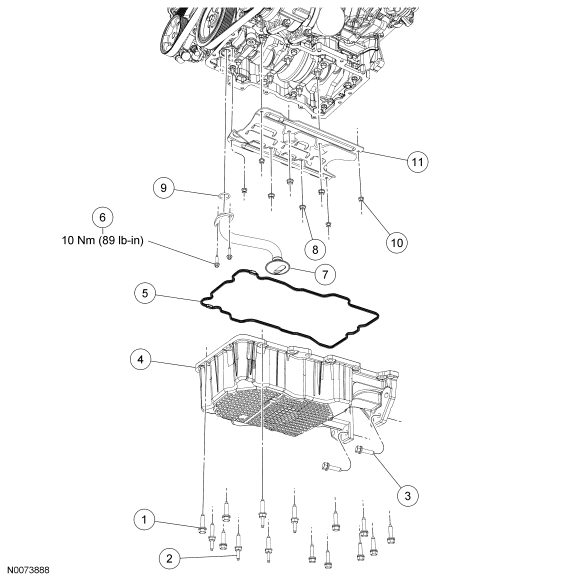

Fig 1: Exploded View Of Oil Pan, Oil Pump Screen And Pickup Tube & Oil Pan Baffle With Torque Specification
| Item | Part Number | Description |
|---|---|---|
| 1 | W709678 | Oil pan bolt (10 required) |
| 2 | W701606 | Oil pan stud bolt (5 required) |
| 3 | W500120 | Oil pan-to-transaxle bolt (2 required) |
| 4 | 6675 | Oil pan |
| 5 | 6710 | Oil pan gasket |
| 6 | W700005 | Oil pump screen and pickup tube bolt (2 required) |
| 7 | 6622 | Oil pump screen and pickup tube |
| 8 | W701582 | Oil pan baffle nut (4 required) |
| 9 | 6625 | Oil pump screen and pickup tube O-ring seal |
| 10 | W701542 | Oil pan baffle nut (4 required) |
| 11 | 6687 | Oil pan baffle |
| Item | Part Number | Description |
|---|---|---|

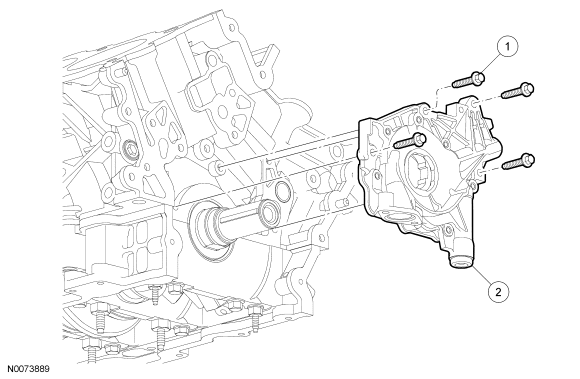

| 1 | W500300 | Oil pump bolt (4 required) |
| 2 | 6621 | Oil pump |
- For additional information, refer to the procedures.
