Engine Front Cover: Notes
WARNING: This page is about a different variant/trim than selected.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31-A |
- |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |

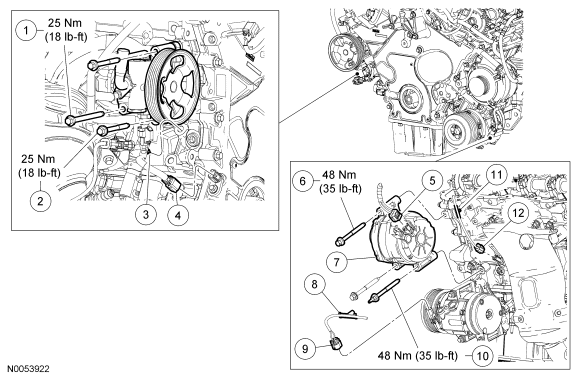

| Item | Part Number | Description |
|---|---|---|
| 1 | W701234 | Power steering pump bolt |
| 2 | W701526 | Power steering pump bolt (2 required) |
| 3 | - | Wiring harness retainer (part of 12B637) |
| 4 | 14A464 | Crankshaft Position (CKP) sensor electrical connector (part of 12B637) |
| 5 | 14A464 | Generator electrical connector (part of 12B637) |
| 6 | W704747 | Generator bolt |
| 7 | 10300 | Generator |
| 8 | - | Wiring harness retainer (part of 12B637) |
| 9 | 14A464 | A/C compressor electrical connector (part of 12B637) |
| 10 | W707669 | Generator stud bolt |
| 11 | - | Wiring harness retainer (part of 12B637) |
| 12 | 14A464 | Engine Oil Pressure (EOP) switch electrical connector (part of 12B637) |

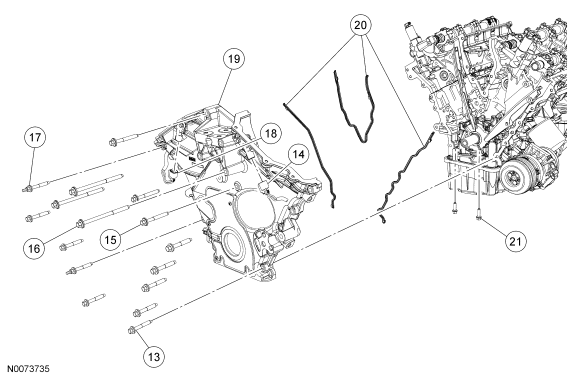

| Item | Part Number | Description |
|---|---|---|
| 13 | W701525 | Engine front cover bolt (8 required) |
| 14 | 14A464 | LH Camshaft Position (CMP) sensor electrical connector (part of 12B637) |
| 15 | W708222 | Engine front cover bolt (3 required) |
| 16 | W708221 | Engine front cover bolt (3 required) |
| 17 | W710030 | Engine front cover stud bolt (2 required) |
| 18 | 14A464 | RH CMP sensor electrical connector (part of 12B637) |
| 19 | 6019 | Engine front cover |
| 20 | - | Engine front cover gaskets (3 required) |
| 21 | W709678 | Oil pan-to-front cover bolt (2 required) |
