Cylinder Head - RH: Notes
WARNING: This page is about a different variant/trim than selected.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31-A |
- |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket Remover ZC-30 |
- |

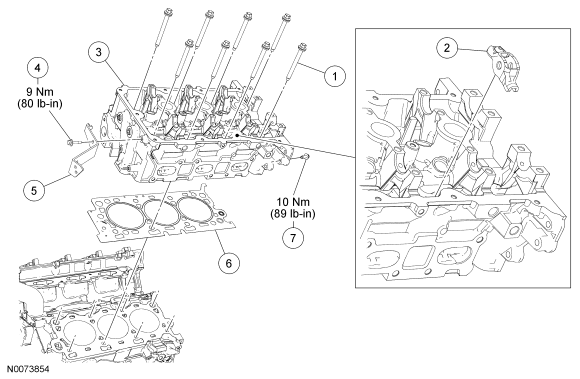

| Item | Part Number | Description |
|---|---|---|
| 1 | 6065 | Cylinder head bolt (8 required) |
| 2 | 6529 | Camshaft roller follower (12 required) |
| 3 | 6049 | Cylinder head |
| 4 | 506413 | Power Steering Pressure (PSP) tube bracket-to-cylinder head bolt |
| 5 | 3A719 | PSP tube bracket |
| 6 | 6051 | Cylinder head gasket |
| 7 | - | Wiring harness retainer bolt |
