Cylinder Head - LH: Notes
WARNING: This page is about a different variant/trim than selected.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31-A |
- |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket Remover ZC-30 |
- |

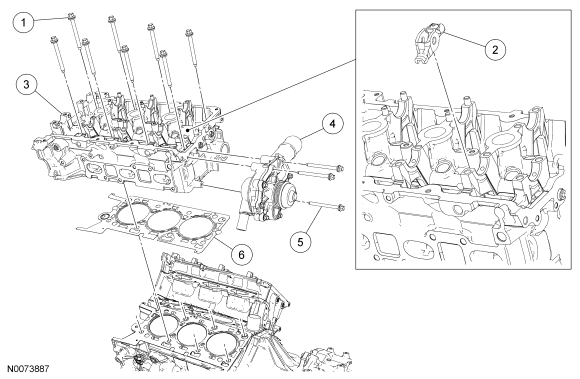

| Item | Part Number | Description |
|---|---|---|
| 1 | 6065 | Cylinder head bolt (8 required) |
| 2 | 6529 | Camshaft roller follower (12 required) |
| 3 | 6050 | Cylinder head |
| 4 | 8501 | Coolant pump |
| 5 | 701544 | Coolant pump bolt |
| 6 | 6083 | Cylinder head gasket |
