Camshafts - RH: Notes
WARNING: This page is about a different variant/trim than selected.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

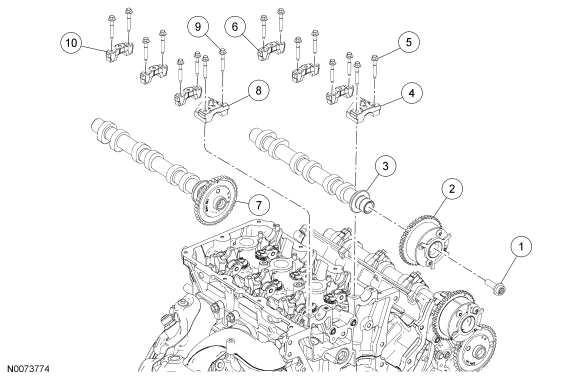

| Item | Part Number | Description |
|---|---|---|
| 1 | 6279 | Variable Camshaft Timing (VCT) actuator bolt |
| 2 | 6C524 | VCT actuator |
| 3 | 6A266 | RH intake camshaft |
| 4 | 6B280 | Intake camshaft thrust bearing cap |
| 5 | W710702 | Intake camshaft bearing cap bolt (8 required) |
| 6 | 6B280 | Intake camshaft bearing cap (3 required) |
| 7 | 6A268 | RH exhaust camshaft |
| 8 | 6B280 | Exhaust camshaft thrust bearing cap |
| 9 | W710702 | Exhaust camshaft bearing cap bolt (8 required) |
| 10 | 6B280 | Exhaust camshaft bearing cap (3 required) |
