Camshafts - LH: Notes
WARNING: This page is about a different variant/trim than selected.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Camshaft Oil Seal | 303-464 (T94P-6256-BH) | |
| Installer, Camshaft Pulley | 303-458 (T94P-6312-AH3), part of 303-S455 | |
| Installer, Power Steering Pump Pulley | 211-185 (T91P-3A733-A) | |
| Plate, Water Pump Pulley | 303-456 (T94P-6312-AH1), part of 303-S455 | |
| Protector, Camshaft Oil Seal | 303-463 (T94P-6256-AH) | |
| Protector, Water Pump Shaft | 303-457 (T94P-6312-AH2), part of 303-S455 | |
| Remover, Crankshaft Vibration Damper | 303-009 (T58P-6316-D) | |
| Remover, Oil Seal | 303-409 (T92C-6700-CH) | |
| Spacer, Water Pump Pulley | 303-459 (T94P-6312-AH4), part of 303-S455 |
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31-A |
- |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

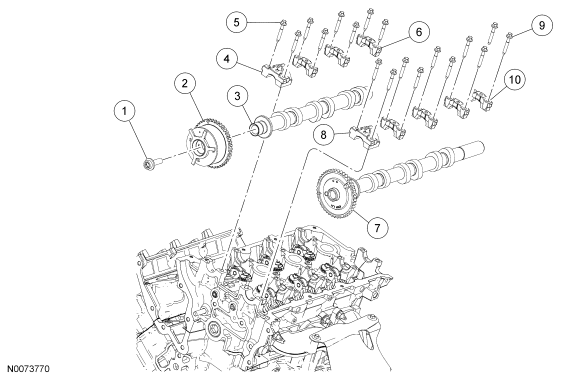

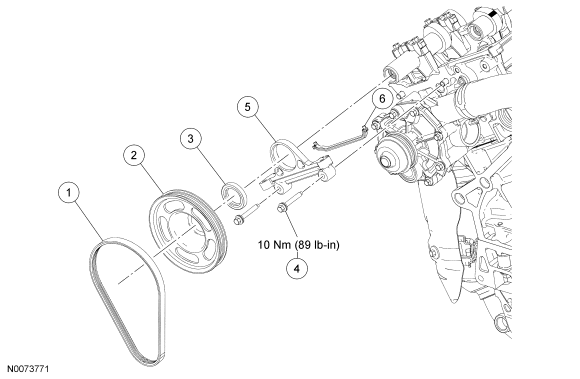

| Item | Part Number | Description |
|---|---|---|
| 1 | 6279 | Variable Camshaft Timing (VCT) actuator bolt |
| 2 | 6C524 | VCT actuator |
| 3 | 6A267 | LH intake camshaft |
| 4 | 6B280 | Intake camshaft thrust bearing cap |
| 5 | W710702 | Intake camshaft bearing cap bolt (8 required) |
| 6 | 6B280 | Intake camshaft bearing cap (3 required) |
| 7 | 6A269 | LH exhaust camshaft |
| 8 | 6B280 | Exhaust camshaft thrust bearing cap |
| 9 | W710702 | Exhaust camshaft bearing cap bolt (10 required) |
| 10 | 6B280 | Exhaust camshaft bearing cap (4 required) |
| Item | Part Number | Description |
|---|---|---|
| 1 | 8K543 | Coolant pump drive belt |
| 2 | 6A359 | Coolant pump drive pulley |
| 3 | - | Camshaft oil seal |
| 4 | W701242 | Camshaft oil seal retainer bolt |
| 5 | 6B293 | Camshaft oil seal retainer |
| 6 | 6B295 | Camshaft oil seal retainer gasket |
