Cylinder Head: Notes
WARNING: This page is about a different variant/trim than selected.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Compressor, Valve Spring | 303-300 (T87C-6565-A) | |
| Compressor, Valve Spring | 303-350 (T89P-6565-A) | |
| Installer, Valve Stem Oil Seal | 303-470 (T94P-6510-CH) |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

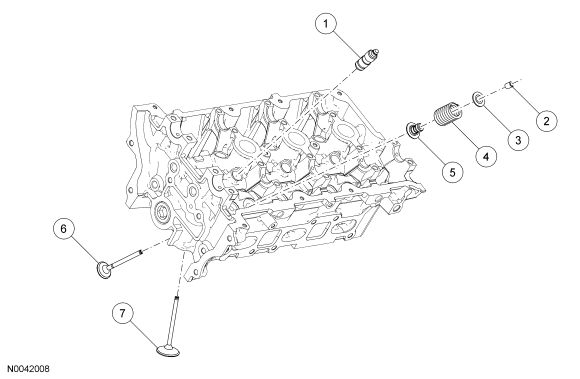

| Item | Part Number | Description |
|---|---|---|
| 1 | 6C501 | Hydraulic lash adjuster (12 required) |
| 2 | 6518 | Valve spring retainer key (24 required) |
| 3 | 6514 | Valve spring retainer (12 required) |
| 4 | 6513 | Valve spring (12 required) |
| 5 | 6A517 | Valve stem seal (12 required) |
| 6 | 6507 | Exhaust valve (6 required) |
| 7 | 6505 | Intake valve (6 required) |
