Differential Seals - RH, All Wheel Drive (AWD): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: MERCON®, MERCON® V, MERCON® SP, Motorcraft Premium Automatic Transmission Fluid and Motorcraft Continuously Variable Chain Type Transmission Fluid are not interchangeable transmission fluids. The use of any transmission fluid other than what is recommended for this transaxle will cause transaxle damage.

Remove the Power Transfer Unit (PTU). For additional information, refer to TRANSFER CASE - POWER TRANSFER UNIT (PTU) article.

NOTE: Transaxle removed for clarity.

Using the Input Shaft Oil Seal Remover and Slide Hammer, remove the differential fluid seals.

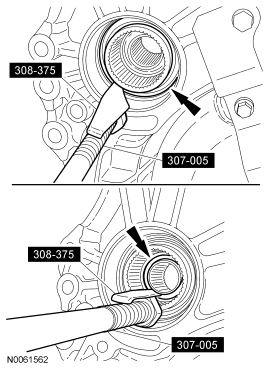

Fig 1: Identifying Differential Fluid Seals & Special Tools (307-005, 308-375)

Courtesy of FORD MOTOR CO.
