Removal And Installation: Halfshaft: Notes
WARNING: This page is about a different variant/trim than selected.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Front Hub Remover | 205-D070 (D93P-1175-B) or equivalent | |
| Halfshaft Installer | 204-161 (T97P-1175-A) |

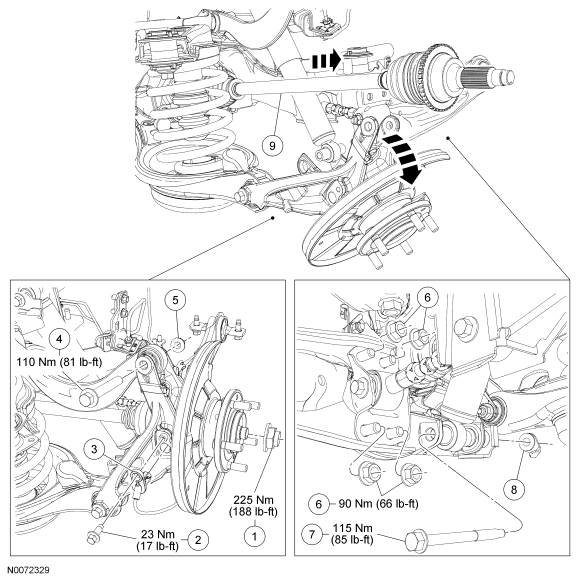

| Item | Part Number | Description |
|---|---|---|
| 1 | 3N405 | Rear wheel hub nut |
| 2 | W500547-S | Shaft speed sensor bolt |
| 3 | 2C187 | Shaft speed sensor |
| 4 | W500547-S | Upper arm bolt |
| 5 | W520515-S | Upper arm nut |
| 6 | W520515-S | Tie-rod bracket nuts (4 required) |
| 7 | W712880-S | Lower shock absorber bolt |
| 8 | W712848-S | Lower shock absorber nut |
| 9 | 4B402 | Rear halfshaft assembly |
